Crossflow Cooling Tower
Liangkan cooling equipment offers a wide design choice of crossflow cooling tower models
Design condition
  • Inlet water temperature: T1=37℃
  • Outlet water temperature: T2=32℃
  • Wet bulb temperature: TWB=28℃
  • Dry bulb temperature: T=31.8℃
  • Atmospheric pressure: P=9.94×104 Pa
Working principle

When crossflow cooling tower is in operation, the airflow is perpendicular to the water flow. The air comes in contact with the PVC fillings while the water flows through the PVC fillings by means of gravity, then the fan exhausts the humid air from the cooling tower to the atmosphere. The heat dispersing material approaches the water basin creating an advantage of reducing the noise of water droplets. The crossflow method is commonly used in square shaped cooling towers. However, there are a large amount of steel sheets fastened in the structure, thus its cost is higher than that of round cooling towers.

Cooling Tower Parts & Functions

Here are a list of counterflow cooling tower pats that might need to be repair replaced during the cooling tower uses:

    1. Water Distribution System
    2. Water Distribution System
      Through a gravity-flow distribution or pressurized spray system, the counterflow cooling tower distributes the water to the PVC fill media, above which hot water basins is mounted at the top of cooling tower. A series of nozzles in each hot water basin allow the water uniformly to be distributed on the PVC fillings.

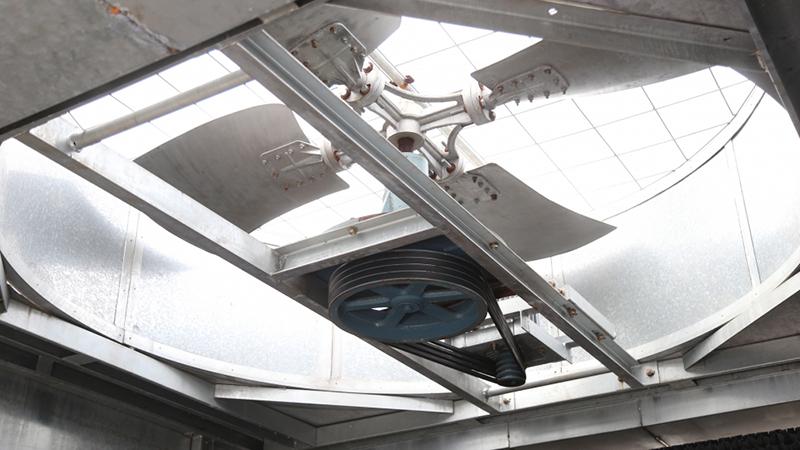

    1. Fan
    2. Fan
      Centrifugal fan. Besides, the axial fan system only requires about half the motor horsepower of centrifugal fan system of the same level, thus the energy saving effect is notable. Made of aluminum alloy and designed with wide twisted-shape blades, the fan possesses characteristics of large air volume, low noise under low noise running.

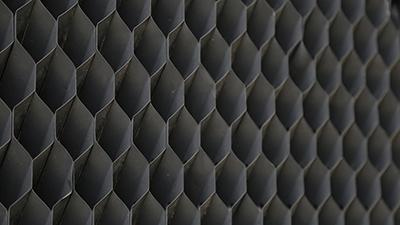

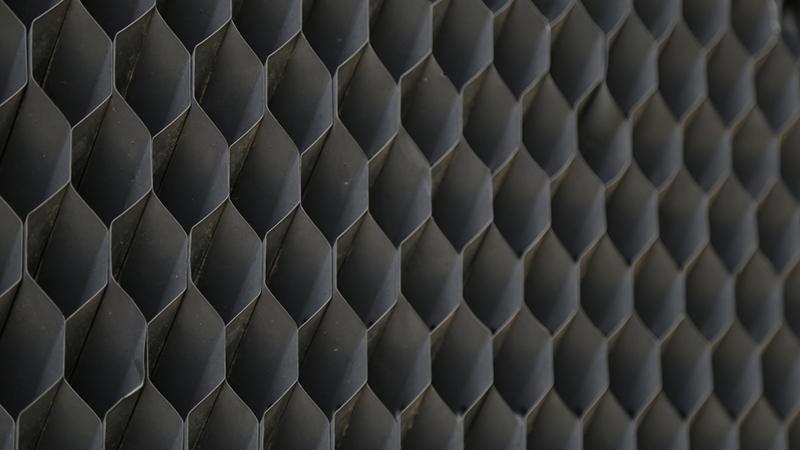

    1. Fill Media
    2. Fill Media
      Low wind-resistance hanging-type PVC fillings feature high heat exchange efficiency and less electric energy consumption.
Projects We How Have Worked on
    1. Case Studies

    2. Project Name: An Electronics Factory in Dongguan

      Location: Fenggang, Dongguan

      Model: LRT-1750L(250x7) Crossflow Cooling Tower (FRP Open Circuit Cooling Tower)

    1. Case Studies

    2. Project Name: Lifeng Plaza

      Location: Shipai Town, Dongguan

      Model: LRT-600(200x3) Crossflow Cooling Tower (FRP Open Circuit Cooling Tower)

    1. Case Studies

    2. Project Name: Perlos

      Location: Guangzhou Economic Development Zone

      Model: LRT-600L Crossflow Cooling Tower (FRP Open Circuit Cooling Tower)

    1. Case Studies

    2. Project Name: Heyuan Electronics Factory

      Location: Heyuan Economic Development Zone

      Model: LRTM-100LCrossflow Cooling Tower (Closed Circuit Steel Cooling Tower)

    1. Case Studies

    2. Project Name: Sapphire Rare Metals

      Location: Jiangmen

      Model: LRT series 3300T Crossflow Cooling Tower (FRP Open Circuit Cooling Tower)

    1. Case Studies

    2. Project Name: Air Conditioning Refrigeration System for Foshan Lihai People's Hospital

      Location: Foshan

      Model: LRT series 3400T Crossflow Cooling Tower (FRP Open Circuit Cooling Tower)
