This FRP counterflow cooling tower is improved based on standard types, with a noise level controlled at 42dB, ensuring it complies with civil use standards. Please see the following standard evaporative cooling products for details. If they do not meet your needs, please do not hesitate to contact us about customization services.

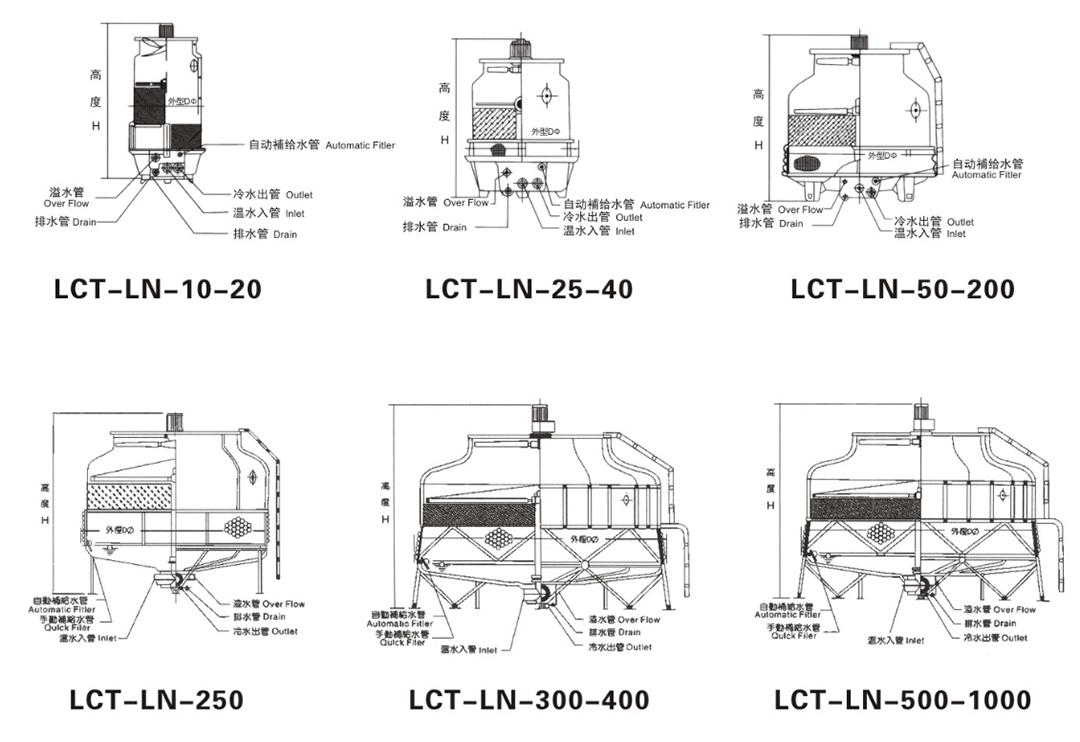

Model | Flow Rate (m3/h) | Overall Dimension | Fan Assembly | Piping Size | Noise (dB) | |||||||
WB28℃ | WB27℃ | Height H | Outer Diameter D | Motor (hp) | Fan | Warm Water Inlet | Cold Water Outlet | Drain Pipe DR | Overflow Pipe OF | Feed Pipe FV | ||
TWB28℃ | TWB27℃ | |||||||||||
LCT-10LN | 7.2 | 8.5 | 1740 | 1060 | 1/4 | 670 | 40 | 40 | 25 | 25 | 15 | 42 |
LCT-15LN | 10.8 | 12 | 1960 | 1060 | 1/4 | 670 | 40 | 40 | 25 | 25 | 15 | 42.5 |
LCT-20LN | 14.4 | 17 | 2000 | 1200 | 1/4 | 670 | 50 | 50 | 25 | 25 | 15 | 43.5 |
LCT-25LN | 18.5 | 20 | 2290 | 1430 | 1/2 | 770 | 80 | 80 | 25 | 25 | 15 | 45 |
LCT-30LN | 21.6 | 24 | 2290 | 1430 | 3/4 | 770 | 80 | 80 | 25 | 25 | 15 | 47 |
LCT-40LN | 28.8 | 32 | 2360 | 1620 | 1 | 770 | 80 | 80 | 25 | 25 | 15 | 47.5 |
LCT-50LN | 36 | 40 | 2595 | 1810 | 2 | 970 | 80 | 80 | 25 | 25 | 15 | 48 |
LCT-60LN | 43.2 | 48 | 2595 | 2000 | 2 | 970 | 80 | 80 | 25 | 25 | 15 | 49 |
LCT-80LN | 57.6 | 64 | 2690 | 2180 | 2 | 1170 | 100 | 100 | 25 | 25 | 25 | 52 |
LCT-100LN | 72 | 80 | 2790 | 2180 | 2 | 1170 | 100 | 100 | 40 | 25 | 25 | 53 |
LCT-125LN | 90 | 100 | 2875 | 2750 | 3 | 1470 | 100 | 100 | 40 | 25 | 25 | 54.5 |
LCT-150LN | 108 | 120 | 2950 | 3070 | 3 | 1470 | 125 | 125 | 50 | 25 | 25 | 56 |
LCT-175LN | 126 | 140 | 3200 | 3300 | 5 | 1750 | 125 | 125 | 50 | 50 | 25 | 56.5 |
LCT-200LN | 144 | 160 | 3300 | 3300 | 5 | 1750 | 125 | 125 | 50 | 50 | 25 | 57 |
LCT-250LN | 180 | 200 | 3600 | 3770 | 5 | 1750 | 150 | 150 | 50 | 50 | 40 | 57.5 |
LCT-300LN | 216 | 240 | 3960 | 3770 | 7.5 | 2400 | 200 | 200 | 50 | 50 | 40 | 58 |
LCT-350LN | 252 | 280 | 4150 | 4790 | 10 | 2400 | 200 | 200 | 50 | 50 | 40 | 58 |
LCT-400LN | 288 | 320 | 4150 | 4790 | 10 | 2400 | 200 | 200 | 50 | 50 | 40 | 58.5 |
LCT-500LN | 360 | 400 | 5200 | 5480 | 15 | 3000 | 250 | 250 | 80 | 80 | 40 | 59 |
LCT-600LN | 432 | 480 | 5200 | 6100 | 15 | 3400 | 250 | 250 | 80 | 80 | 40 | 59.5 |
LCT-700LN | 504 | 560 | 5770 | 6600 | 20 | 3400 | 250 | 250 | 80 | 80 | 40 | 59.5 |
LCT-800LN | 576 | 640 | 5820 | 6600 | 20 | 3400 | 250 | 250 | 80 | 80 | 40 | 61 |
LCT-1000LN | 720 | 800 | 5920 | 7600 | 30 | 3600 | 300 | 300 | 80 | 80 | 40 | 62 |
